M-SAP enabled AQUA CUBE CONTROLLER

AQC series

Automatic Controller for Sulfuric Peroxide Mixture
Cu/H2SO4/H2O2
  • Platingimg
  • Half/soft etching / laminate pre-processing, etc.
  • Brown oxide as a substitute for blackening
  • Final finishing process

Can measure the difficult-to-control
sulfuric peroxide mixture-based
chemicals in real time

We were the world's first company to successfully measure the concentration of sulfuric peroxide mixture-based chemicals in real time. This improves poor adhesion in dry film preprocessing and the copper thickness variations in surface treatment, thereby making it possible to produce ultra-multiple-layer, ultra-thin substrates.

  • Productivity
    UP
  • Production stability
    UP
  • Quality
    stability
    UP
  • Real time
    display
Simple analyzer mini LABO Can accomplish a speedy analysis for every process. product image

Product features

  • Production state can be checked any time

    With the logger function, you can instantly check whether the concentration is fluctuating or is stable during the production stage and send a prompt feedback to the production site. This function is a boon for production supervisors.

    AQUA CUBE Can also be controlled from a PC.
    These are our unique features

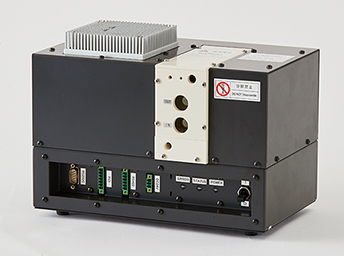

    Concentration
    sensing station
    High-precision/high-stability
    Direct & real time measurements
    product image
  • Keeps the chemical concentration stable
    Comparison of range of fluctuation of concentrations

    When a fixed quantity is supplied without controlling the concentration, the concentration becomes unstable and may also affect the stability of the product quality.

    Concentration not
    controlled
    graph
    Concentration
    controlled with AQUA CUBE
    graph
    Difference between no control of concentration and control with AQUA CUBE

    The concentration of chemical controlled with AQUA CUBE CONTROLLER is extremely stable and the quality of the product is also enhanced.

    Variations in the finished width (σ)
    Stability is very good

Specifications

Applicable chemicals Cu/H2SO4/H2O2
Model code AQC-2
Various processes Hydrogen peroxide + sulfuric acid + copper surface treated with different chemicals
Concentration specifications Cu/H2SO4/H2O2
Display device 12-inch LCD display
Source voltage AC 100 V/200 V 50/60 Hz
External dimensions (mm) / weight 400 (W) x 1200 (H) x 500 (D) 30 kg

Can also be used for chemicals not mentioned above
